Franco Rossi Why Fit Matters: The Practical Case for Testing Compact Tractor Attachments
A single mismatched attachment can cost a buyer hundreds of dollars and compromise safety—yet one in four purchasers report fit or hookup problems. This guide treats compatibility as the primary buying criterion. It shows how real-world, repeatable tests—measured clearances, actual hookups, and performance checks—separate marketing claims from usable gear.
Reviewers paired a range of compact tractors with loaders, mowers, snowblowers and backhoes in controlled scenarios to record what actually fits and what needs adapters, welds, or workarounds. Readers will get clear rules, a step-by-step fit checklist, and case studies that prevent wasted purchases and unsafe setups.
The aim is practical: enable confident purchases, reduce shop time, and keep tractors performing safely across jobs and seasons and maintenance costs down overall.
Testing Hardox Compact Tractor Pallet Forks: All Attachments in Action
How Attachment Compatibility Is Defined
The three compatibility axes
Reviewers think about compatibility as three measurable axes: physical fit, performance fit, and functional fit. Physical fit is the nuts‑and‑bolts interface — pin diameter, hitch plate width, quick‑attach pattern, clearance to fenders and arms. Performance fit covers whether the tractor can actually move and power the attachment — lift capacity, hydraulic flow and pressure, PTO torque and rpm. Functional fit is the day‑to‑day experience: control layout, hookup time, and how the implement behaves while working.
Physical fit: the checklist that prevents surprise
Physical failures are often immediate: pins won’t line up, adapter plates block travel, or the backhoe digs into the counterweight. Testable items include pin center measurements, plate thickness, quick‑attach compatibility, and boom clearance. Small mismatches like a 1/8″ misaligned plate can cost hours of shop time.
Performance fit: numbers that matter
Performance issues show up under load. Reviewers ran lift and flow tests — lifting a 75% rated load, measuring hydraulic flow in GPM, watching for motor lugging or stall at PTO. They compared published tractor specs (e.g., Kubota BX series or John Deere 1-series) to real-world behavior; a mower that “fits” mechanically but needs more flow than the tractor provides will bog, heat up, or wear components quickly.
Functional fit: the human factor
An attachment that fits and performs can still be a pain. Control ergonomics, the number of hoses and couplers, and setup time all affect usability. Testers timed hookups, counted required adapters, and scored how intuitive controls felt during a half‑day job.
How reviewers scored compatibility
Each axis received a 0–10 score based on objective checks (measurements, flow/torque readings) and repeatable use tests (lift cycles, 30‑minute operating runs). Subtle mismatches—like a loader that fits but wanders under load—scored middling; immediate showstoppers (non‑matching pin patterns or undersized PTO) scored near zero. That scoring helps readers interpret a single compatibility number as layered information, not a marketing promise.
Next up: a closer look at the mounting systems, hitch types, and power connections that most often make or break those scores.
Mounting Systems, Hitch Types, and Power Connections
What to look for at the hitch
Reviewers start with hard measurements: pin diameter, center‑to‑center spacing, plate width and plate thickness. Common three‑point categories on compacts are Category 1 (smaller pins) and Category 2 (bigger pins and wider spacing). They measured a sample of tractors (Kubota BX/B-Series, John Deere 1‑series, and similar) and recorded lower link spacing and lift‑arm geometry to compare with implement drawings. Tip: if a pin won’t drop through, don’t force it — measure and match, or use a properly sized adapter plate.
Quick‑attach and loader couplers
Loaders use several patterns: manufacturer‑specific quick‑attaches, universal skid‑steer (Bobcat‑style) couplers on some front loaders, and proprietary systems from Quicke, Westendorf, etc. Testers hooked and unhooked each coupler, timed the process, and checked for play under rated load. Small misfits (adapter plate or shims) are usually OK; mismatched loader frames often aren’t worth modifying.
PTO: spline counts and speeds
PTO compatibility is twofold: spline count/shaft diameter and rpm. Compact tractors most often use a 1‑3/8″ 6‑spline (Category 1) PTO; larger compacts and mid‑size tractors move to 1‑3/4″ 20‑spline (Category 2). The other critical spec is speed (540 vs 1000 rpm). Reviewers tested engagement by running implements under load — mowing or rotary tilling — and watched for chatter, vibration, or shaft slip. A spline adapter can bridge some gaps; mismatched rpm is generally a dealbreaker.
Hydraulics and electrics
Hydraulic attachments list required flow (GPM) and pressure (PSI). Testers used inline flow meters and pressure gauges to confirm a tractor can meet those specs during cycles. If flow is insufficient, options include a high‑flow pump or a loader‑mounted power pack; if pressure is too low, the implement will be sluggish or unsafe. Electrical connections are usually simple 12V or multi‑pin for lights/controllers; testers inspected harness routing and used multimeters to confirm voltage and polarity.
Which mismatches are fixable
Simple pin/plate differences, coupler adapters, PTO spline adapters, and electrical pigtails are usually solvable. Fundamental mismatches — wrong PTO rpm, permanently insufficient hydraulic flow, or loader geometry that prevents safe mounting — mean choosing a different tractor or attachment.
Attachment Categories: Which Ones Fit Easily and Which Require Extra Work
Loaders and buckets
Loaders/buckets are the most user-friendly — but quick‑attach patterns vary. Reviewers found Kubota BX and John Deere 1‑series loaders usually accept common bucket widths, but proprietary couplers can block third‑party buckets.
Backhoes
Backhoes eat space and weight. Many compact loaders leave the belly or loader arms where backhoe mounts must sit.
Mid‑ and rear‑mounted mowers
Belly and mid‑mount decks need precise lift‑arm geometry; rear mowers rely on correct PTO and hitch spacing.
Rotary cutters and flail mowers
These ask for torque and proper PTO speed.
Tillers
Tillers are PTO‑hungry and have ground‑clearance demands.
Snow blowers
Snow units need correct PTO rpm, chute clearance, and mounting height.
Box blades and pallet forks
Simple mechanically but sensitive to capacity and carriage width.
Bale spears
Bale spears change balance and raise CG.
Implements requiring hydraulic hookups
Hydraulic rams and motors need flow and fittings.
How to Measure a Tractor and Attachment: A Step-by-Step Fit Checklist
Tools to bring
A short toolbox saves hours at the yard. Reviewers carried:
The measurement checklist
Work methodically and record every number.
Acceptable tolerances & a recording format
Practical tolerances make the difference between “fussy” and “fit.”
Use a one‑page compatibility matrix: Item | Tractor measure | Attachment spec | Tolerance | Fit? | Adapter needed. A photo of each measurement reduces guesswork.
Decision flow (quick)
Measure → compare to attachment specs → evaluate adapters (sleeves, spacer plates, hydraulic coupler swaps) → mount and test under light load, watching for binding, leaks, or tilt. Reviewers avoided heavy trials until the implement cycled cleanly through full travel.
Real-World Fit Tests and Case Studies
Case 1 — Straightforward: Kubota BX23S + Woods 60″ Rotary Cutter
The team installed a Woods 60″ rotary cutter on a Kubota BX23S. Installation time: 25 minutes with two people. First use under load: cut tall fescue; repeated cycles: 20 passes over rough ground. Observed problems: none beyond expected gearbox lash. Fix/recommendation: keep the quick‑attach pins greased and verify PTO shaft overlap before first cut. Lesson: properly matched hitch geometry and a PTO that met recommended RPM made this a no‑drama fit.
Case 2 — Close call: John Deere 1025R + Land Pride Box Scraper
Interface: Category 1 3‑point on a 1025R to a 5′ Land Pride box scraper. Tests: 40-minute install (needed a helper), light grading, then several heavy loads. Observed problems: slight side‑tilt under load and accelerated wear on lower hitch pins. Cause: lower pin clearance was ~1/8″ oversized. Fix/recommendation: fitted 1/16″ steel bushings and switched to greaseable pins; retested with no further drift. Small change, big stability win — top link height adjustment also reduced chatter.
Case 3 — Performance shortfall: Mahindra eMax 25S + Hydraulic Post‑Hole Digger
Interface: mid‑size compact with a third‑party auger. Tests: install 50 minutes, first hole under load, then three repeat digs. Observed problems: auger stalled and spun slowly despite correct mounting. Cause: hydraulic flow mismatch — the auger required 9–12 GPM; tractor supplied ~6 GPM at operating pressure. Fix/recommendation: swapped for an auger rated for low‑flow tractors or added a hydraulic flow‑through implement motor with higher displacement. Lesson: match attachment GPM/psi to tractor or power won’t follow.
Case 4 — Structural limit: Massey GC1705 + Large Front Loader Bucket
Interface: loader to compact chassis. Tests: lift full bucket, cycle 100 times. Observed problems: frame flex and cracked weld at sub‑frame after 80 cycles. Fix/recommendation: vendor warranty repair and limit bucket fill; choose loader rated for tractor’s ROPs/TLB spec. Lesson: overloading or mismatched structural ratings shows up fast — measure expected payload vs. rated capacity.
Safety, Maintenance, and Troubleshooting Fit Problems
Safety margins to observe
A good rule: never push an attachment right up to the tractor’s published limit. Reviewers recommend planning for at least a 20–25% safety margin on lift capacity, PTO torque and hydraulic flow. Improper fit shortens life and creates obvious hazards — pins can shear under side-load, PTO driveline lash can fling a shaft guard, and overloaded lift arms can fail without warning. In one testing run a slightly undersized lower-pin clearance led to accelerated wear and side‑tilt; that small mismatch quickly became a stability risk under repeated cycle loads.
Routine maintenance that preserves fit
Routine care keeps interfaces behaving the way they were designed to.
Troubleshooting process reviewers used
When fit issues showed up, reviewers followed a consistent checklist: visual inspection for cracks and wear → verify key dimensions (pin diameters, centerlines, PTO overlap) → low‑load functional test → implement a temporary fix (greaseable pin, steel bushing, shims) → retest. Temporary fixes work for alignment and wobble; structural damage does not. Stop and call a dealer or qualified fabricator if any of these appear:
Safe adapter use and clear red flags
Only use adapters rated for the exact hitch category and load; adapters change load paths and often lower capacity. Red flags that mean “don’t use” include mismatched GPM/psi ratings, adapters with amateur welds, and attachments that require constant emergency bracing. If in doubt, stop testing and consult the dealer or a certified fabricator before the next run.
This practical, safety‑first approach keeps attachments doing their job — and sets up the final checklist of what to look for when buying.
Making Attachments Work: Final Takeaways and a Practical Buying Checklist
They should measure first, match power and weight capacities, prefer factory-tested combinations, and treat adapters as compromises. Practical reality favors simple, proven pairings — a hitch, mount, and PTO that align without forced modifications. When in doubt, opt for attachments rated for a margin above tractor limits and test-fit under safe, controlled conditions as demonstrated in this article.
Buying checklist: confirm mounting system and hitch class; verify PTO type, speed, and shaft size; compare weight and torque ratings; check hydraulic flow/pressure needs; inspect clearances and center-of-gravity; look for manufacturer-tested combos or dealer-fit guarantees; plan for adapters only if unavoidable. Real-world testing remains the final step to a reliable setup and document results.
This cracked me up and helped a ton. I learned the hard way that “it should fit” is not a recommendation — it’s a challenge.
Bought the 202-Piece Heavy-Duty Hitch Pin Assortment Kit last month after the article (because who doesn’t want 202 pins, right?) and it actually came in handy for swapping implements. Also ordered the Cat-1 5.5-inch Draw Pin Hitch Pack for my older tractor — those draw pins are beefy.
Real-world tip: measure twice, bolt once, but also keep spare pins in your truck. I once lost a pin in a muddy field and had to MacGyver a replacement from a coat hanger lol.
The case studies section was my favorite — seeing failure modes and fixes made the tech parts less boring. Keep more of those please.
Haha coat hanger solution — been there. FYI the 202-piece kit has a surprising variety; saved me on a rental when a custome 3/4″ pin went MIA.
202 pins is oddly satisfying to own. 😂 I label sizes in little bags so I’m not digging through them in the dark.
For the record: when you use the Cat-1 5.5-inch Draw Pin, make sure the clevis/hitch hole hasn’t elongated. That causes play even with new pins.
If anyone wants, post the tractor make/model and we can point to common pin sizes and recommended spare counts. Happy to help troubleshoot fit issues.
Thanks Eleanor — appreciated. We’ll add a mini checklist for ‘what to keep in your truck’ (pins, clips, measuring tape, small torque wrench) in the next update.
Good shout on spares. Also, if your original draw pin is rusty, replace it — shear failure is not fun. The Cat-1 pack should keep you covered for a while.
Article was helpful but kinda made me paranoid — in a good way. I keep thinking about the ‘fit’ of every little thing now.
Small rant: why do pin clips come in different shapes? I lost one minute ago and now I’m googling ‘cotter pins vs lynch pins vs R clips’ at 2am 🤦♀️
Anyway, picked up the 202-Piece Heavy-Duty Hitch Pin Assortment Kit after seeing the list. Pro tip: label the sizes as soon as you open it — I dumped the whole tray and felt my life flash before my eyes. Also, the checklist about measuring saved me from ordering a 3-Point 2-inch Receiver that would’ve been useless.
Also lol: if an attachment ‘fits’ but makes weird noises, it probably doesn’t fit. End of story.
R-clips are my go-to for quick swaps; cotter pins are more permanent. If you’re switching implements a lot, get a few spare R-clips in your cab.
Totally relate — pin clip variety is annoying. We’ll add a short explainer on clip types (R-clip, linch, hairpin, cotter) and typical use-cases in the next edit. Glad the kit helped.
If noise shows up, also inspect shear pins and link wear. Noise is an early warning, not a vibe.
Thanks! R-clips saved me today. Also labeling the kit = life saver. I now sleep a little easier 😅
Solid read. I liked the comparison of hitch types — finally someone explained when to use a 3-point adapter vs a drawbar for trailers.
I grabbed the 3-Point 2-inch Receiver Trailer Hitch Adapter they mentioned and it saved me a weekend project. Fit was tight but worked after I adjusted the top link height.
Great article — finally something that treats ‘fit’ like a real issue and not just marketing fluff.
I liked the step-by-step fit checklist section; I actually went out and measured my subcompact after reading and realized my loader arms sit 2.25″ wider than the spec in the manual. Whoops.
The part about mounting systems cleared up why my old pallet forks (clamp-on style) felt sketchy on the loader — I should’ve read the section on clamp vs fixed mounts. The Clamp-On 4000 lb Pallet Forks mention was useful, but I wish there were more photos of clearance issues.
One nit: the safety section could be bigger — a quick checklist for torque specs or pin shear limits would be gold.
Overall: practical, readable, and actually saved me a trip to the dealer. 👍

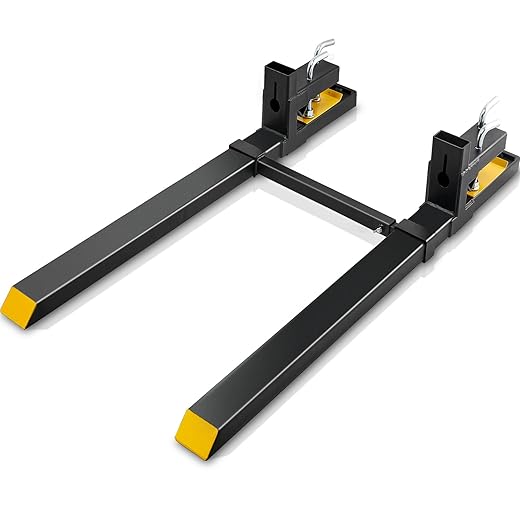

Nice — glad it helped. If your loader arms are 2.25″ wider, consider shimming or getting longer pallet forks. Clamp-on forks can be fiddly; the 4000 lb clamp-on ones are decent but require careful set-up.
